Ár:
84.728 Ft (66.715 Ft + ÁFA)

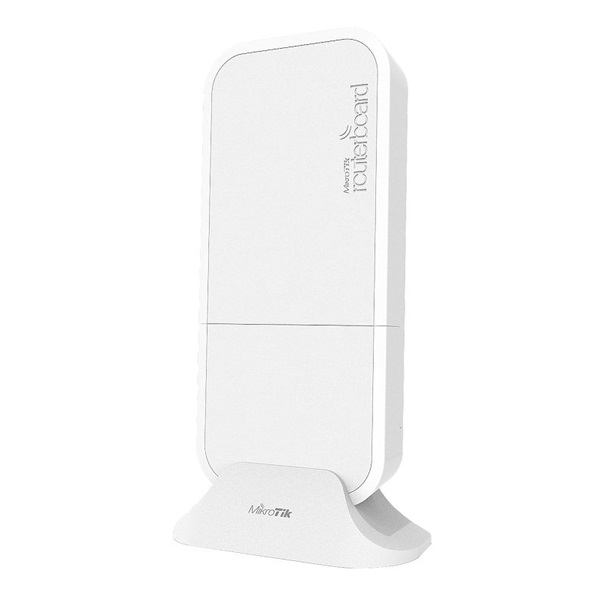

MIKROTIK Wireless Access Point DualBand, 2x1000Mbps, 1167Mbps, kültéri - RBWAPGR-5HACD2HND&R11E-LTE6

Ár:
84.728 Ft (66.715 Ft + ÁFA)
Gyártó cikkszám: RBWAPGR-5HACD2HND&R11E-LTE6
Várható szállítás: 2024. április 22.
Cikkszám: 282488
Elérhetőség: Utolsó 1 db raktáron
Gyártó:

Leírás

Specifications

Details
Product code RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
License level 4
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 60°C



Powering

Details
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 10 W


Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)


Wireless

Details
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5


Ethernet

Details
10/100/1000 Ethernet ports 2


Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE/RED, FCC, IC, EAC, ROHS


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -100
11MBit/s 22 -94
6MBit/s 23 -95
54MBit/s 19 -78
MCS0 23 -95
MCS7 18 -73

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68



Included parts
