Ár:
103.671 Ft (81.631 Ft + ÁFA)
Menny.:

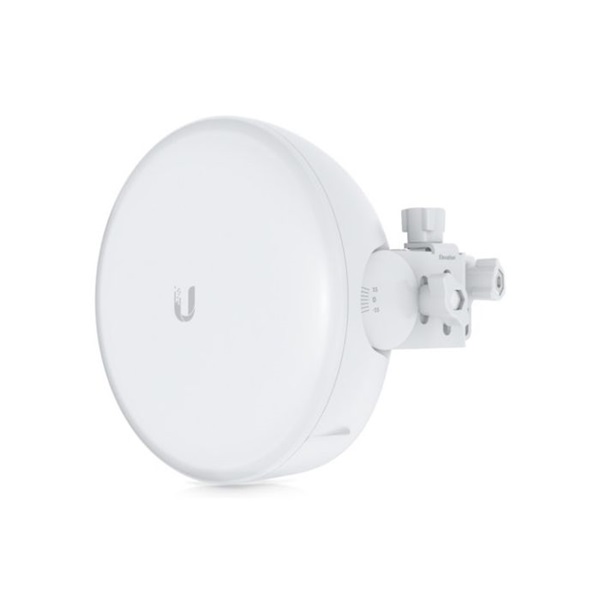

UBiQUiTi Wireless Antenna AirMAX GigaBeam Plus 60GHz, 1,5+Gbps, 1,5km, kültéri - GBE-PLUS

Ár:
103.671 Ft (81.631 Ft + ÁFA)
Menny.:
Gyártó cikkszám: GBE-PLUS
Várható szállítás: 2022. szeptember 29.
Cikkszám: 300463
Elérhetőség: Előrendelhető
Gyártó:

Leírás

Mechanical
Dimensions O155 x 137 mm (O6.1 x 5.4")
Weight 1kg (2.2 lb)
Enclosure Materials UV Resistance Polycarbonate, Stainless Steel
Mount Materials Metal
Wind Loading 50 N at 200 km/h (11.24 lbf at 125 mph)
Hardware
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking Interface 10/100/1000 Mbps Ethernet RJ45
Management Interface Ethernet In-Band
Bluetooth
RF Connections Internal
Max. Power Consumption 11W
Power Method Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply 24VDC, 0.5A Gigabit PoE Adapter
24V, 1A for using Motor Accessory
Supported Voltage Range 22 to 26VDC
ESD/EMP Protection Air/Contact: ± 24kV
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 - 95% Noncondensing
Certifications FCC, IC, CE
LEDs
Power Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Internet Service Provider (UISP™)
Blue: Connected to UISP
Ethernet Flashing Blue: Ethernet Traffic Detected
60GHz Blue: Active Connection
Software
OS airOS®
Operating Modes PtP as Access Point or Station
Ubiquiti Specific Features Integrated 60 GHz Radio, Discovery Protocol
Security WPA2 AES Only
Dashboard Yes
Wireless Settings Yes
Network Settings Yes
System Yes
Services UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
Tools Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test
Software Management Bluetooth Management for Easy Setup Over UISP™ App
WEB UI
Minimum Software Requirements Any Modern Web Browser/iPhone/Android
RF
Operating Frequency* 57,000 - 66,000 MHz
* Depends on regulatory region.
Max. Conducted TX Power 17 dBm
Channel Bandwidth 2160 MHz
Operating Channels 58320, 60480, 62640, 64800 MHz
Antenna Gain 35 dBi
Beamwidth HPOL: NaN (The Antenna is Only Vertically Polarized)
VPOL: 3°
Elevation: 3°
Management Radio 2400 - 2483.5 MHz
Electrical Downtilt
