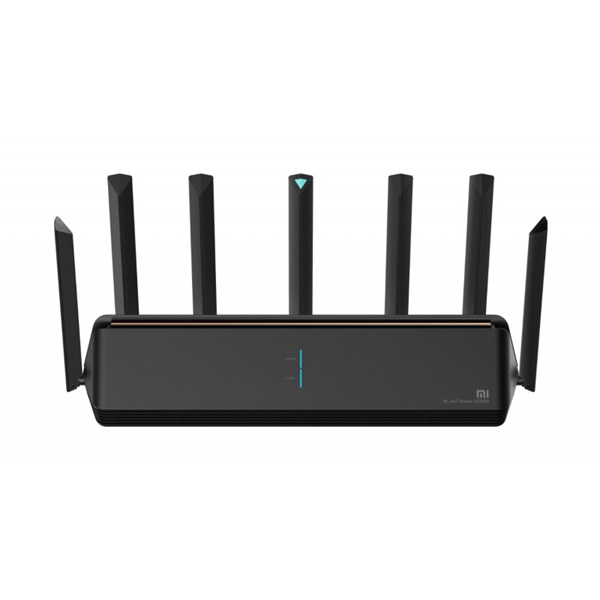

| Mi AIoT Router AX3600 |
| Dimensions | |
|
L×W×H (per unit)
|
408 mm × 133 mm × 177 mm
|
| Product color
|
Black
|
|
Hardware configuration
|
|
| Processor
|
IPQ8071A 4-core A53 1.4 GHz CPU
|
| Network processing unit
|
Dual-core 1.7 GHz NPU
|
| ROM
|
256MB
|
| Memory
|
512MB
|
| 2.4G Wi-Fi |
2 × 2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 574 Mbps)
|
| 5G Wi-Fi |
4 × 4 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 2402 Mbps)
|
| Product antenna
|
6 external high-gain antennas + 1 external AIoT antenna
|
| Product heat dissipation
|
Natural heat dissipation
|
| Total ports | 1× 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX) |
| .
|
3× 10/100/1000M self-adaptive LAN ports (Auto MDI/MDIX)
|
| LED indicator light
|
7× (SYSTEM light ×1, INTERNET light ×1, LAN light ×4, AIoT status light ×1)
|
| System reset button
|
1×
|
| Power input port
|
1×
|
| Protocol standards
|
IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
|
|
Wireless specifications
|
|
|
Dual band
|
2.4 GHz and 5 GHz
|
|
Modulation
|
11b: DSSS: DBPSK(1 Mbps), DQPSK (2 Mbps), CCK(5.5/11 Mbps) |
| 11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)" | |
| 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15 | |
| 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams) | |
| 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. | |
| .
|
Rate set: MCS0 to MCS11 (supports 4 streams)"
|
|
Software specifications
|
|
|
Operating system
|
Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT
|
|
WiFi Encryption
|
WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
|
|
Network Security
|
Access control (blacklist, whitelist), guest network, DoS, SPI firewall, IP and MAC address binding, IP and MAC filtering
|
|
Management applications
|
Supports web, Android, iOS
|
|
Product accessories
|
|
|
User manual
|
1×
|
|
Networking cable
|
1×
|
|
Product power supply
|
1×(112 V/2 A)
|
|
Working Environment
|
|
|
Working environment
|
Temperature: 0°C to 40°C
|
|
Operating humidity
|
10%–90% RH (no condensation)
|
|
Storage temperature
|
-40°C to +70°C
|
|
Storage humidity
|
5%–90% RH (no condensation)
|
| Package contents | |
 |
 |
 |
 |
|
Main body
|
User Manual
|
Power cable
|
Networking cable
|
