927.362 Ft (730.206 Ft + ÁFA)

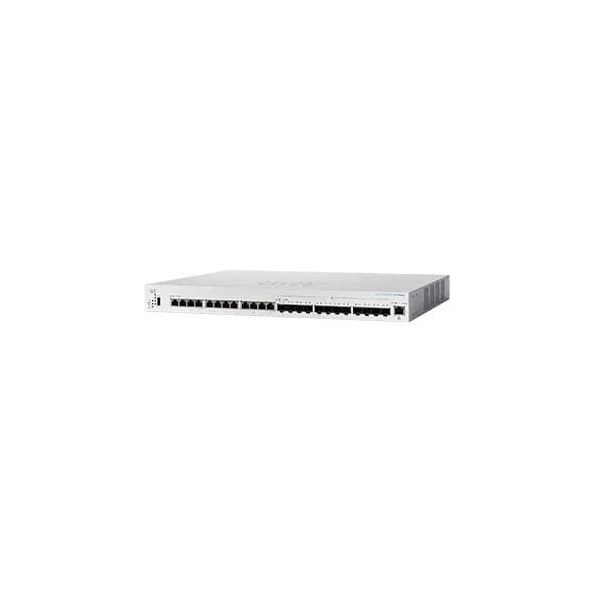

CISCO Switch 12x10000Mbps + 12x10000Mbps SFP+, Rackes, Fémházas, Menedzselhető - CBS350-24XTS-EU

927.362 Ft (730.206 Ft + ÁFA)
Gyártó cikkszám: CBS350-24XTS-EU
Várható szállítás: 2024. július 24.
Cikkszám: 315267
Elérhetőség: Utolsó 1 db raktáron


Capacity in Millions of Packets per Second (mpps) (64-byte packets) 240 Mpps
Switching Capacity in Gigabits per Second (Gbps) 480 Gbps
Layer 2 Switching

Spanning Tree Protocol
Port grouping/link aggregation
- Up to 8 groups
- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation?VLAN
- Support for up to 4,094 VLANs simultaneously
- Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
- Management VLAN
- Private VLAN with promiscuous, isolated, and community port
- Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
- Guest VLAN, unauthenticated VLAN
- Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
Voice VLAN
Multicast TV VLAN
VLAN Translation
Selective Q-in-Q
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)
Unidirectional Link Detection (UDLD)
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping
IGMP Querier
Head-of-Line (HOL) blocking
Loopback DetectioN

Layer 3

IPv4 routing
- Wirespeed routing of IPv4 packets
- Up to 990 static routes and up to 128 IP interfaces
IPv6 routing
Layer 3 Interface
- Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)
Policy-Based Routing (PBR)
DHCP Server
DHCP relay at Layer 3
User Datagram Protocol (UDP) relay

Stacking - Up to 4 units in a stack
- High availability, Fast stack failover delivers minimal traffic loss

Secure Shell (SSH) Protocol
Secure Sockets Layer (SSL)
IEEE 802.1X (Authenticator role)
Web-based authentication
STP Bridge Protocol Data Unit (BPDU) Guard
STP Root Guard
STP loopback guard
DHCP snooping
IP Source Guard (IPSG)
Dynamic ARP Inspection (DAI)
IP/MAC/Port Binding (IPMB)
Secure Core Technology (SCT)
Secure Sensitive Data (SSD)
Trustworthy systems
Private VLAN
Layer 2 isolation Private VLAN Edge (PVE) with community VLAN
Port security
RADIUS accounting
Storm control
DoS prevention
Multiple user privilege levels in CLI
ACLs Support for up to 1,024 rules


Web user interface
Remote Monitoring (RMON)
IPv4 and IPv6 dual stack
Firmware upgrade
Port mirroring
VLAN mirroring
DHCP (options 12, 66, 67, 82, 129, and 150)
Secure Copy (SCP)
Autoconfiguration with Secure Copy (SCP) file download
Text-editable config files
Auto Smartports
Textview CLI
Cloud services
Embedded Probe for Cisco Business Dashboard
Cisco Network Plug and Play (PnP) agent
Login banner
Other management

Power consumption
System Power Consumption 110V=78.4W
Power Consumption (with PoE) N/A
Heat Dissipation (BTU/hr) 273.65
Total System Ports 12 x 10 Gigabit copper ports
?12 x 10 Gigabit SFP+ (dedicated)
?1 x GE management port
RJ-45 Ports 12 x 10 Gigabit copper ports
Combo Ports(RJ 45 + Small form-factor pluggable [SFP]) 12 x 10 Gigabit SFP+ (dedicated)
Console port Cisco Standard RJ45 console port
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
Packet buffer 3 MB
Unit dimensions (W x H x D) 440 x 257 x 44 mm (17.3 x 10.12 x 1.73 in)
Unit weight 4.84 kg (10.67 lb)
Power 100-240V 50-60 Hz, internal, universal
Certification 32° to 122°F (0° to 50°C)
Storage temperature -13° to 158°F (-25° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
Acoustic Noise 25°C: 43.3 dB
MTBF at 25°C (hours) 1,372,246
