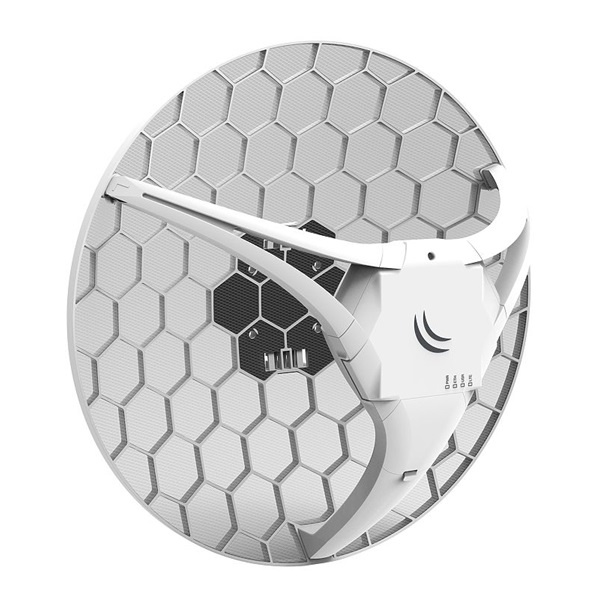

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
Specifications
| Details |
| Product code |
RBLHGR&R11e-LTE6 |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| RouterOS license |
3 |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-30°C to 60°C |
| |
|
Powering
| Details |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
| FAN count |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
Mobile
| Details |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Micro SIM) |
| MiniPCI-e slots |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
IP54 |
Included parts
