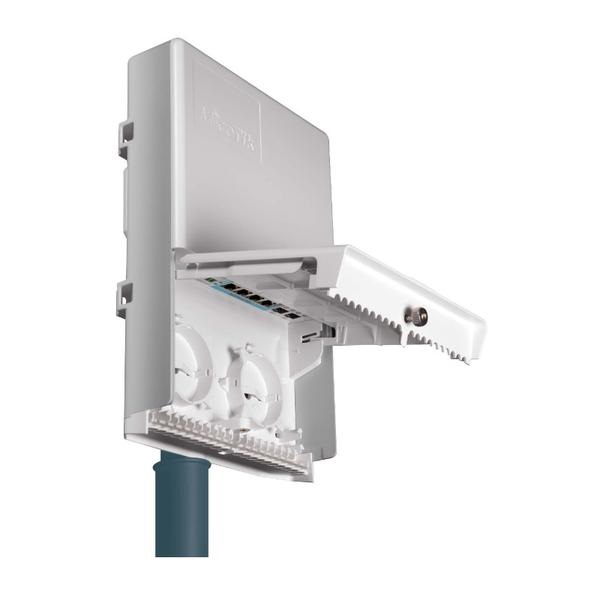

MIKROTIK Switch netPower Lite 7R, 8x1000Mbps + 2x10Gbps SFP+, kültéri - CSS610-1GI-7R-2S+OUT

Ár:
61.974 Ft (48.798 Ft + ÁFA)
Menny.:
Gyártó cikkszám: CSS610-1GI-7R-2S+OUT
Várható szállítás: 2022. október 05.
Cikkszám: 300447
Elérhetőség: Előrendelhető
Gyártó:

Leírás

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

The power supply is NOT included with the product- must be purchased separately.

Specifications

Details
Product code CSS610-1Gi-7R-2S+OUT
Dimensions 304 x 212 x 71 mm
Operating System SwitchOS
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 12-57 V
2-pin terminal input Voltage 12-57 V
Max power consumption 29 W
Max power consumption without attachments 7 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V


PoE-out

Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input < 30 V) 600 mA
Max out per port output (input > 30 V) 450 mA


Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 1G Ethernet ports with PoE-out 1


Fiber

Details
SFP+ ports 2


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54

Included parts
