Ár:
52.387 Ft (41.250 Ft + ÁFA)
Menny.:

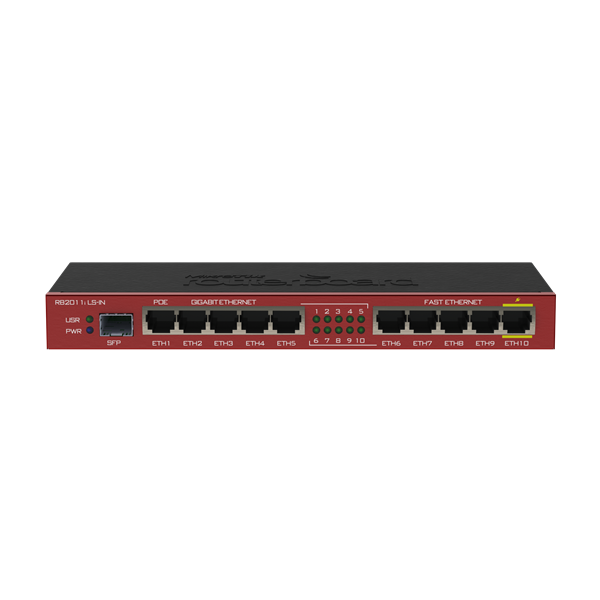

MIKROTIK Vezetékes Router RouterBOARD 5x100Mbps + 5x1000Mbps +1xSFP, Fémházas, Menedzselhető, Asztali - RB2011iLS-IN

Ár:
52.387 Ft (41.250 Ft + ÁFA)
Menny.:
Gyártó cikkszám: RB2011ILS-IN
Várható szállítás: 2022. december 15.
Cikkszám: 318610
Elérhetőség: Előrendelhető
Gyártó:

Leírás

RB2011iLS is our first product with SFP cage for gigabit SFP transceivers and ideal solution for FTTH (Fiber To The Home) implementations.

The RB2011iLS has 11 ports: Gigabit SFP cage and five Gigabit Ethernet ports that can be switched together providing affordable wirespeed Fiber-to-Copper converter, and additional five Fast Ethernet ports. Board can be powered by power jack or PoE.

Note that SFP transceiver is NOT included. RB2011iLS supports any 1.25G SFP transceivers that is within the SFF Committee specifications for SFP Transceivers. RB2011LS doesn’t have hardware support for PON (Passive Optical Network).

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

RouterBOARD 2011iLS-IN comes with desktop enclosure and power supply.

Wall mount kit for network closet is available for purchase as an optional accessory.

Specifications

Details
Product code RB2011iLS-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 230x90x25mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -35C to +65C



Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 18 W
Max power consumption without attachments 6 W
PoE in Passive PoE
PoE in input Voltage 8-30 V


PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 510 mA
Max total out (A) 510 mA


Ethernet

Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5


Fiber

Details
SFP DDMI Yes
SFP ports 1



Included parts
