Ár:
97.790 Ft (77.000 Ft + ÁFA)
Menny.:

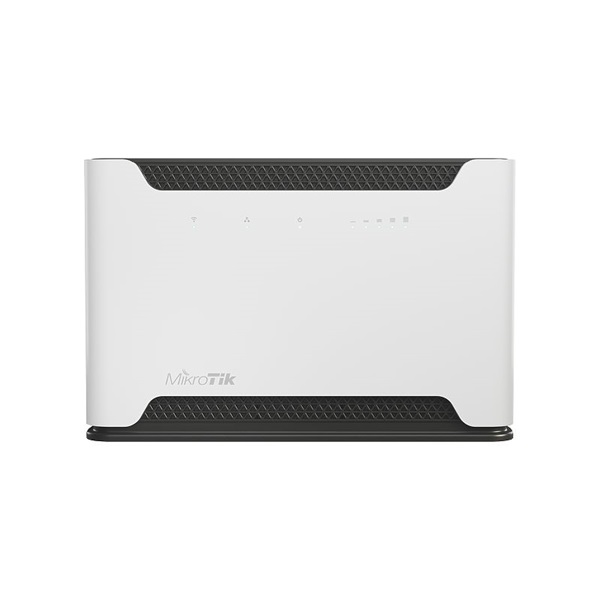

MIKROTIK Wireless Router DualBand, 5x1000Mbps, Chateau LTE12-600Mbps, 1xMicroSIM, Asztali - RBD53G-5HACD2HND-TC&EG12-EA

Ár:
97.790 Ft (77.000 Ft + ÁFA)
Menny.:
Gyártó cikkszám: RBD53G-5HACD2HND-TC&EG12-EA
Várható szállítás: 2024. április 18.
Cikkszám: 286144
Elérhetőség: Előrendelhető
Gyártó:

Leírás

Specifications

Details
Product code RBD53G-5HacD2HnD-TC&EG12-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 240 x 156 x 44 mm
License level 4
Operating System RouterOS (compatible only with v7.0 and above)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C



Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 23 W
Max power consumption without attachments 17 W


Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) / 3 (1800MHz)
LTE Category 12 (600Mbps Downlink, 150Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)


Wireless

Details
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5


Ethernet

Details
10/100/1000 Ethernet ports 5


Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
Mode button Yes


Certification & Approvals

Details
Certification CE/RED, EAC, ROHS


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
