MIKROTIK Wireless Router RouterBOARD 2,4Hz, 2x100Mbps, 300Mbps, Falra rögzíthető - RBMAP2ND
Ár:
20.591 Ft (16.213 Ft + ÁFA)
Menny.:
Kosárba rakom

MIKROTIK Wireless Router RouterBOARD 2,4Hz, 2x100Mbps, 300Mbps, Falra rögzíthető - RBMAP2ND

Ár:
20.591 Ft (16.213 Ft + ÁFA)
Menny.:
Kosárba rakom
Gyártó cikkszám: RBMAP2ND
Várható szállítás: 2024. augusztus 01.
Cikkszám: 318660
Elérhetőség: Elérhető (Raktáron)
Gyártó:
Kívánságlistára teszem

Leírás

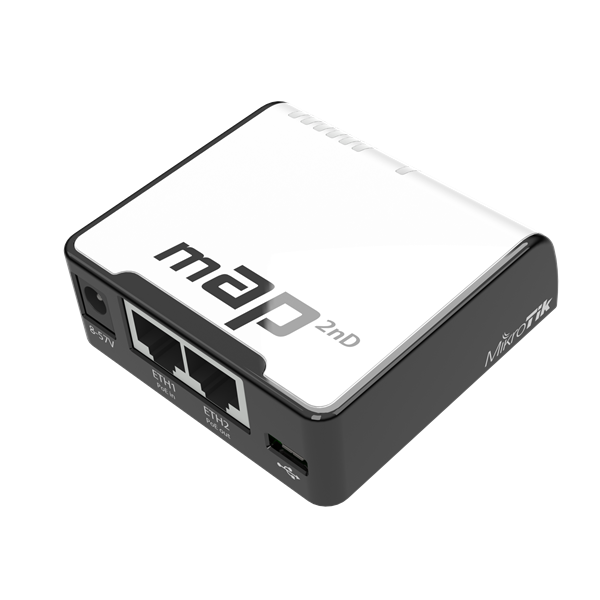

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Specifications

Details
Product code RBmAP2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 68x68x19mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C



Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4


Ethernet

Details
10/100 Ethernet ports 2


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1


Powering

Details
MicroUSB input Voltage 5-5 V
Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage 8-57 V
Max power consumption 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V


PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.5 A
Max total out (A) 0.5 A


Certification & Approvals

Details
Certification FCC, IC


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71



Included parts
