Ár:
60.381 Ft (47.544 Ft + ÁFA)
Menny.:

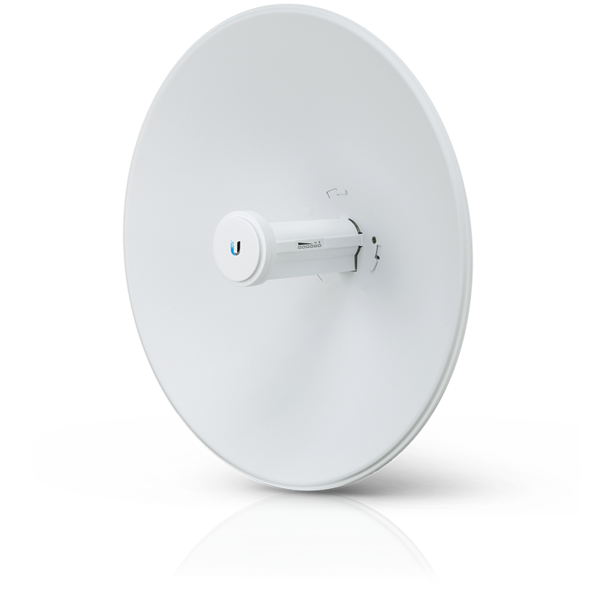

UBiQUiTi Wireless Antenna PowerBeam Point-to-Point, 5GHz, 1x1000Mbps, kültéri - PBE-5AC-GEN2

Ár:
60.381 Ft (47.544 Ft + ÁFA)
Menny.:
Gyártó cikkszám: PBE-5AC-GEN2
Várható szállítás: 2022. december 15.
Cikkszám: 306040
Elérhetőség: Előrendelhető
Gyártó:

Leírás

PBE-5AC-Gen2
Dimensions 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight 2.22 kg (4.89 lb)
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Chanel Sizes
PtP Modes
PtMP Mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Enclosure Characteristics
Antenna Feed
Dish Reflector

Outdoor UV Stabilized Plastic
Powder-Coated SPCC
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Enclosure Characteristics Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Wind Loading 380 N @ 200 km/h (85.4lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency (MHz)
Worldwide 5150-5875
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250
5250-5350
5240-5725
5725-5850
Management Radio (MHz)
Worldwide 2412 - 2472
US/CA 2412 - 2462
