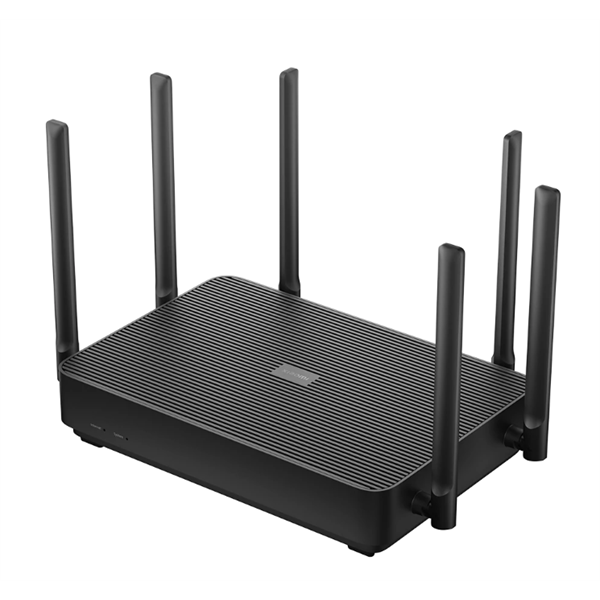

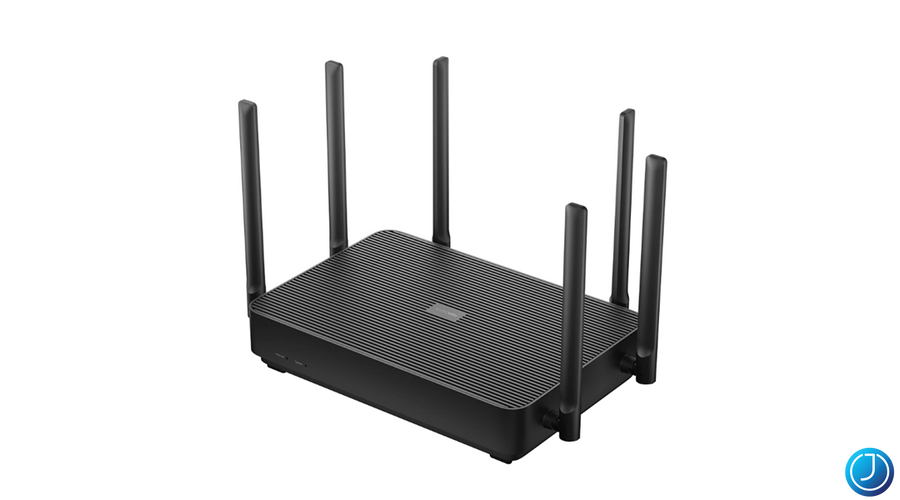

| Xiaomi Router AX3200 |
 |
| L×W×H (per unit)
|
284mm × 186mm × 186mm
|
| Product color
|
Black
|
|
Hardware configuration
|
|
| Processor
|
MediaTek Filogic800 Dual-core A53 1.35GHz CPU
|
| Memory
|
256MB
|
| 2.4GHz Wi-Fi |
4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)
|
| 5GHz Wi-Fi |
4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
|
| Antennas
|
External omnidirectional antennas
|
| Total ports | 10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1 |
| .
|
10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3
|
| LED indicator light
|
2 lights, incl. System indicator × 1, Internet indicator × 1
|
| System reset button
|
×1
|
| Mesh networking button
|
×1
|
| Power input port
|
×1
|
| Protocol standards
|
IEEE 802.11a/b/g/n/ac/ax,IEEE 802.3/3u/3ab
|
|
Wireless specifications
|
|
| Dual-band
|
2.4GHz, 5GHz
|
| Modulation | 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) |
| 11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) | |
| 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM. | |
| 11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM. | |
| .
|
11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
|
|
Software specifications
|
|
| Operating system
|
MiWiFi ROM, a smart router operating system based on OpenWRT
|
| Wi-Fi Encryption
|
WPA-PSK/WPA2-PSK/WPA3-SAE encryption
|
| Management applications
|
Supports Web, Android, iOS
|
|
Working Environment
|
|
| Working environment Temperature
|
0-40 Celsius
|
| Operating humidity
|
10%-90%RH (non-condensing)
|
| Storage temperature
|
-40-70 Celsius
|
| Storage humidity
|
5%-90%RH (non-condensing)
|
|
Package contents
|
|
| Xiaomi Router AX3200
|
×1
|
| User Manual
|
×1
|
| Power cord
|
×1
|
| Network cable
|
×1
|
